12-Five
Rough Terrain Forklifts

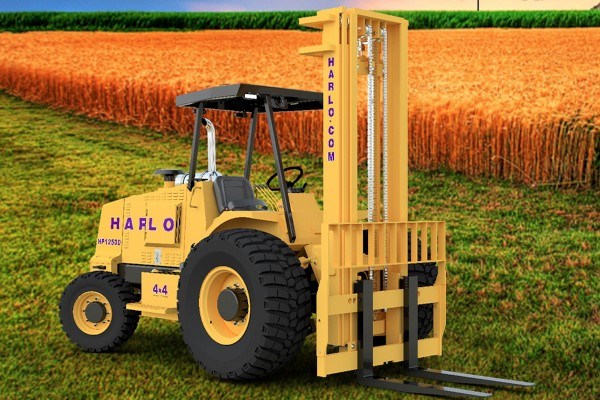

The 12-FIVE is HARLO's largest unit on the market. In addition to agricultural applications, the performance of the unit can be utilized in construction, lumber, sawmill, forestry, metal, salvage yard, trucking, and rentals just to name a few.
Features
The 12-FIVE introduces HARLO into a larger capacity market. In addition to Agricultural applications, the performance of the
unit can be utilized in construction, lumber/sawmill, forestry, metal, salvage yard, trucking, and rentals just to name a few.
Standard Options
When you want the fastest on the job site at 27.4 mph, or utilizing our generous 35 GPM main pump to lift at 96.3 fpm (15’2 stage mast) and 144.4 fpm (22’3 stage mast), multitasking with amazing agility at 11.2” of ground clearance, turning at an 11’ radius, HARLO is second to none! The internal wet brake and holding brake give stopping and holding power for all applications.
Exceptional Feature
Smooth shifting is accomplished with our 4-speed manual transmission. Standard mast options of 15’ two-stage and 22’ three-stage lift your load with ease. The Cummins 74 HP Diesel engine is low maintenance, fuel efficient, provides plenty of power, and has faster response times.
Specifications
JOHN DEERE ENGINE
| Model | JohnDeere–4045TI53 Tier 4 Final Emission Certified |
| Type | 4 Cycle Turbocharged Diesel |
| Cylinders | 4 |
| Displacement | 275 CID |
| Fuel Injection | Electronic |
| Fuel | Ultra Low Sulfur Diesel |
| Tank Capacity | 24 Gallons |
| Cooling | Liquid Cooled |
| Max Speed (eng) | 2400 RPM |
| Idle Speed (eng) | 900 RPM |
| Horse Power | 74 HP @ 2400 RPM |
| Maximum Torque | 224 ft/lb @ 1600 RPM |
| Water Pump Type | Integral |
| Engine Oil | SAE 15-W40 |
CUMMINS ENGINE
| Model | Cummins QSF3.8L Tier 4 Final Emission Certified |
| Type | 4 Cycle Turbocharged Diesel |
| Cylinders | 4 |
| Displacement | 229 CID |
| Fuel Injection | Bosch Electronic |
| Fuel | Ultra Low Sulfur Diesel |
| Tank Capacity | 24 Gallons |
| Cooling | Liquid Cooled |
| Max Speed (eng) | 2200 RPM |
| Idle Speed (eng) | 800 RPM |
| Horse Power | 74 HP @ 2200 RPM |
| Maximum Torque | 295 ft/lb @ 1300 RPM |
| Water Pump Type | Integral |
| Engine Oil | SAE 15-W40 |
